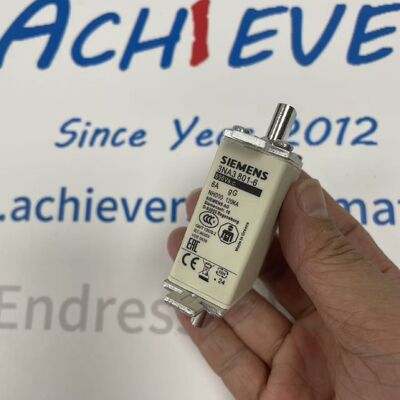

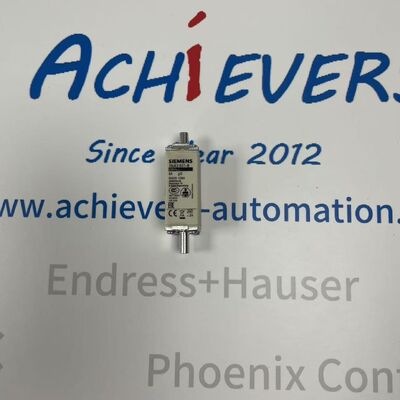

SIEMENS 3NA3801-6 high-reliability low-voltage HRC (High Rupturing Capacity) fuse link
Product Details:
Description:Siemens
Product No. : 3NA3801-6
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Siemens 3NA3801-6 is a high-reliability low-voltage HRC (High Rupturing Capacity) fuse link belonging to Siemens’ Sentron product family, specifically engineered for reliable protection of electrical systems and equipment in industrial environments. As a core component in Siemens’ low-voltage protection lineup, it is designed to safely disconnect circuits in the event of overloads or short circuits, preventing damage to critical electrical infrastructure and ensuring operational safety. This compact fuse link features a front indicator, silver-plated non-corrosive contacts, and live grip lugs, ensuring easy identification of tripped fuses, safe replacement, and long-term operational reliability. Backed by Siemens’ renowned expertise in electrical protection and industrial automation, the 3NA3801-6 meets global industry standards and is widely trusted for its consistent performance in commercial and industrial electrical installations.
Detail:
|
Specification Category
|
Details
|
|
Product Model
|
Siemens 3NA3801-6 (Sentron Series)
|
|
Product Type
|
Low Voltage HRC Fuse Link
|
|
Rated Voltage
|
AC: 690 V; DC: 250 V[1][6][7]
|
|
Rated Current
|
6 A (full-range protection)[1][2][7]
|
|
Breaking Capacity
|
AC: 120 kA; DC: 25 kA[1][3][7]
|
|
Fuse Size
|
NH000 (per IEC 60269-1)[1][7]
|
|
Operational Class
|
Class GG (full-range line/device protection)[1][7]
|
|
Certifications & Compliance
|
CE, RoHS compliant; meets IEC 60269-1, IEC 60947-2[1][6]
|
|
Mechanical Parameter
|
Measurement
|
|
Overall Length
|
77.8 mm[2][5]
|
|
Overall Width
|
52.5 mm[2][5]
|
|
Overall Depth
|
21 mm[1][2][5]
|
|
Mounting Type
|
Compatible with NH000 fuse systems; any orientation (preferably vertical)[1]
|
|
Housing Material
|
Ceramic, heat and corrosion resistant[2][5]
|
|
Operating Temperature Range
|
Operating: -5 ℃ to +40 ℃; Storage: -20 ℃ to +50 ℃[1][7]
|
Brand
Siemens develops medical imaging and diagnostics equipment, such as X - ray machines and magnetic resonance imaging (MRI) systems, playing a crucial role in modern medical diagnostics. Siemens is one of the world's largest producers of energy - efficient and resource - saving technologies. It holds leading positions in various fields, including offshore wind turbine construction, gas and steam turbines for power generation, and power transmission solutions.
