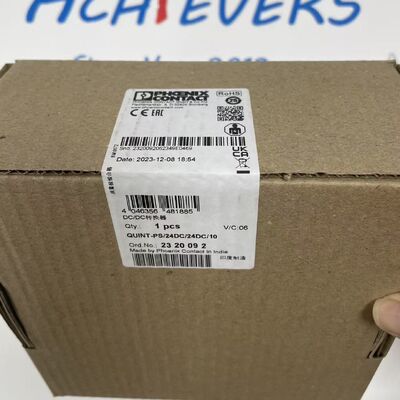

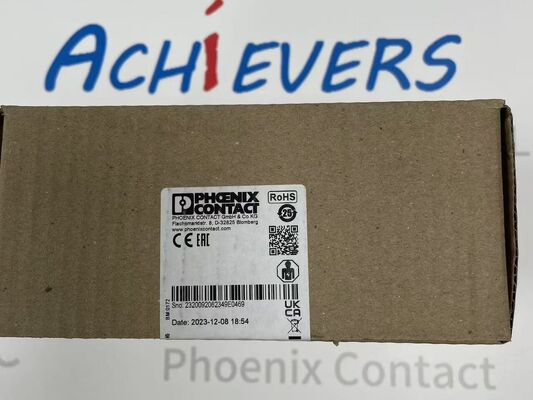

Phoenix Contact QUINT-PS/24DC/24DC/10 high-performance primary-switched DC-DC converter
Description:
Description: Phoenix
Product No. :QUINT-PS/24DC/24DC/10
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The QUINT-PS/24DC/24DC/10 is a high-performance primary-switched DC-DC converter, exclusively engineered to integrate seamlessly with Phoenix Contact industrial automation systems. As a core component compatible with Phoenix Contact’s QUINT POWER product lineup, this converter delivers stable, efficient power conversion for critical industrial applications, including manufacturing, process control, and automation systems. Its design aligns with Phoenix Contact’s strict quality and reliability standards, ensuring easy integration into existing Phoenix Contact-based setups, reducing deployment time and enhancing system availability — a key advantage for industrial facilities relying on Phoenix Contact’s industry-leading power supply solutions.
Detail:
| Feature Category |
QUINT-PS/24DC/24DC/10 Specifications |
Phoenix Contact Compatibility Details |
| Power Conversion Technology |
Primary-switched DC-DC converter; Input: 24V DC (18V DC - 32V DC range); Output: 24V DC / 10A; 240W output power; SFB (Selective Fuse Breaking) technology |
Compatible with Phoenix Contact QUINT POWER series; Integrates seamlessly with Phoenix Contact DIN rail-mounted automation components and power distribution systems |
| Protection & Reliability |
Galvanic isolation; Reverse polarity protection; Transient surge protection; Preventive function monitoring; MTBF > 763,000 hours (40°C); IP20 protection rating |
Matches Phoenix Contact’s industrial-grade reliability standards; Compatible with Phoenix Contact’s fault monitoring and diagnostic systems for seamless status feedback |
| Design & Installation |
DIN rail mounting; Slim housing (80mm design width); DIP-coated PCB for use in harsh atmospheres; Pluggable screw connections; Integrated universal DIN rail adapter UTA 107/30 |
Fits standard Phoenix Contact DIN rail mounting systems; Compatible with Phoenix Contact’s standard connection accessories and cable management solutions |
| Operational Flexibility |
Adjustable output voltage (22.5V DC - 28.5V DC); Parallel/series connection support; Power boost (12.5A permanent, -25°C to 40°C); Mains buffering time > 12ms (24V DC) |
Configurable to match Phoenix Contact system requirements; Compatible with Phoenix Contact redundancy modules for increased system availability |
| Parameter Category |
Specification Details |
Phoenix Contact Compatibility Alignment |
| Input Parameters |
Nominal input voltage: 24V DC; Input voltage range: 18V DC - 32V DC (14V DC - 18V DC with derating); Inrush current:< 15A (typical); Input fuse: 25A (internal); Recommended input breaker: 16A - 20A |
Matches Phoenix Contact’s input voltage standards; Compatible with Phoenix Contact’s input protection components and power distribution units |
| Output Parameters |
Efficiency: > 92%; Nominal output current: 10A (-25°C to 60°C); SFB current: 60A (12ms); Residual ripple: < 20mVpp; Overvoltage protection: < 35V DC; No-load power dissipation: < 1.6W |
Consistent with Phoenix Contact’s output performance benchmarks; Ensures stable power supply for Phoenix Contact controllers and I/O modules |
| Mechanical & Environmental |
Operating temperature: -25°C to 70°C (derating above 60°C); Storage temperature: -40°C to 85°C; Conductor cross-section: 0.2mm² - 2.5mm²; Weight: 350g (approx.) |
Environmental ratings match Phoenix Contact’s industrial product standards; Compatible with Phoenix Contact’s harsh-environment installation requirements |
| Certifications & Compliance |
Certifications: CE, ATEX, IECEx, UL, CSA; Compliance with ANSI/ISA 12.12 (Class I, Division 2); RoHS compliant; Conforms to EN 55032, EN 55035 |
Certifications align with Phoenix Contact’s global industry standards; Ensures interoperability with Phoenix Contact’s certified automation systems worldwide |
