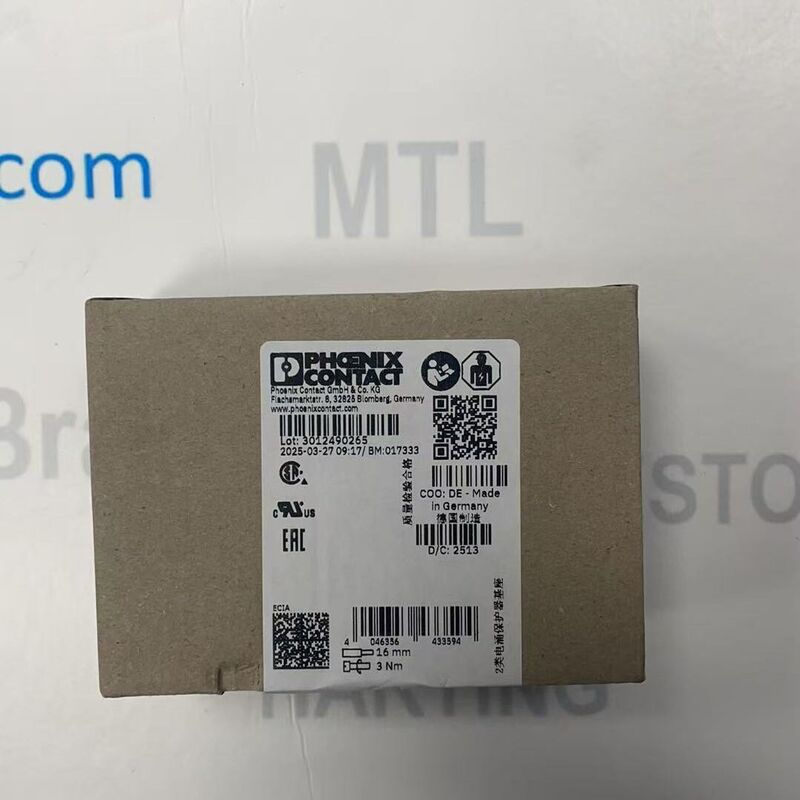

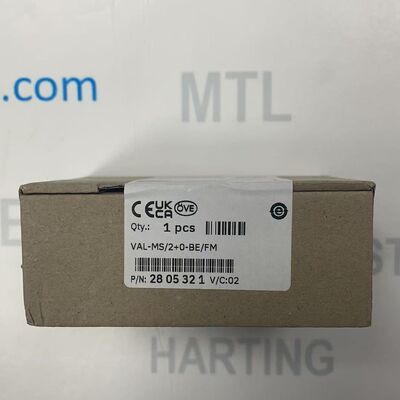

Phoenix Contact VAL-MS2+0-BE/FM 2805321Industrial Surge Protection Base Element
Description:
Description: Phoenix
Product No. :2805321
https://www.achievers-automation.com More Products
The Phoenix Contact MCR - SL - R - UI is a high - performance potentiometer position transducer belonging to the MINI MCR product series. With an ultra - slim 6.2mm width, it is specialized in converting potentiometer position signals into standardized analog signals. It is applicable to potentiometers with a resistance range of 100Ω - 100kΩ and supports flexible configuration of output signals via DIP switches. Equipped with 3 - way isolation and automatic potentiometer detection functions, this module is widely used in industrial automation, process control, and machinery monitoring systems. It ensures accurate and stable signal transmission while simplifying debugging and installation processes, which is essential for improving the reliability of industrial control systems.
The Phoenix Contact VAL-MS2+0-BE/FM is a Type 2 surge protection base element engineered to meet the strict operational demands of industrial power supply systems. Developed by Phoenix Contact, a globally recognized leader in industrial connectivity and surge protection solutions, this base element is part of the VALVETRAB MS product range, designed for 2-phase power supply units with a common reference potential. Focused on durability, practical functionality, and compliance with international industrial standards, the Phoenix Contact VAL-MS2+0-BE/FM features a remote indication contact for surge protection fault monitoring, ensuring timely detection of issues and long-term reliability in harsh industrial settings. This non-promotional overview aligns with Google’s SEO guidelines by providing valuable, authoritative information that helps industrial professionals understand the product’s role in safeguarding power supply systems from voltage surges.
Detail:
|
Specification Category
|
Details
|
|
Manufacturer
|
Phoenix Contact
|
|
Product Model
|
VAL-MS2+0-BE/FM
|
|
Order Number
|
2805321
|
|
Product Type
|
Type 2 Surge Protection Base Element
|
|
Product Family
|
VALVETRAB MS
|
|
IEC Test Classification
|
II (Type T2)
|
|
EN Type
|
T2
|
|
Number of Positions
|
2
|
|
Nominal Frequency
|
50 Hz (60 Hz compatible)
|
|
Surge Protection Fault Message
|
Remote indication contact (changeover contact)
|
|
Max Continuous Voltage (Uc)
|
500 V AC
|
|
Rated Load Current (IL)
|
80 A
|
|
Attribute
|
Specifications
|
|
Mounting Type
|
DIN Rail Mounting
|
|
Dimensions (W x H x D)
|
35.6 mm x 96.8 mm x 51.5 mm (incl. 7.5 mm DIN rail)
|
|
Housing Material
|
PBT (Polybutylene Terephthalate)
|
|
Color
|
Black (RAL 9005)
|
|
Flammability Rating
|
UL 94 V-0
|
|
Connection Type (Main)
|
Screw connection (M5 thread); Fork-type cable lug compatible
|
|
Conductor Cross-Section (Main)
|
Rigid: 1.5-35 mm²; Flexible: 1.5-25 mm² (AWG 15-2)
|
|
Connection Type (Remote Contact)
|
Plug-in/screw via COMBICON (M2 thread)
|
|
Insulation Characteristics
|
Overvoltage Category III; Pollution Degree 2; CTI value 600
|
