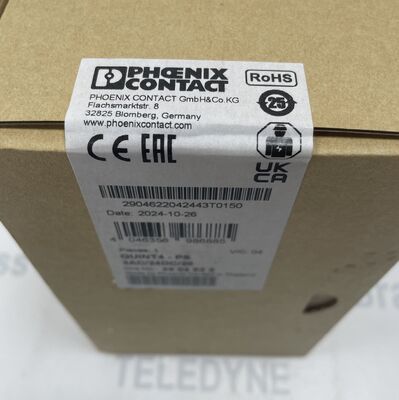

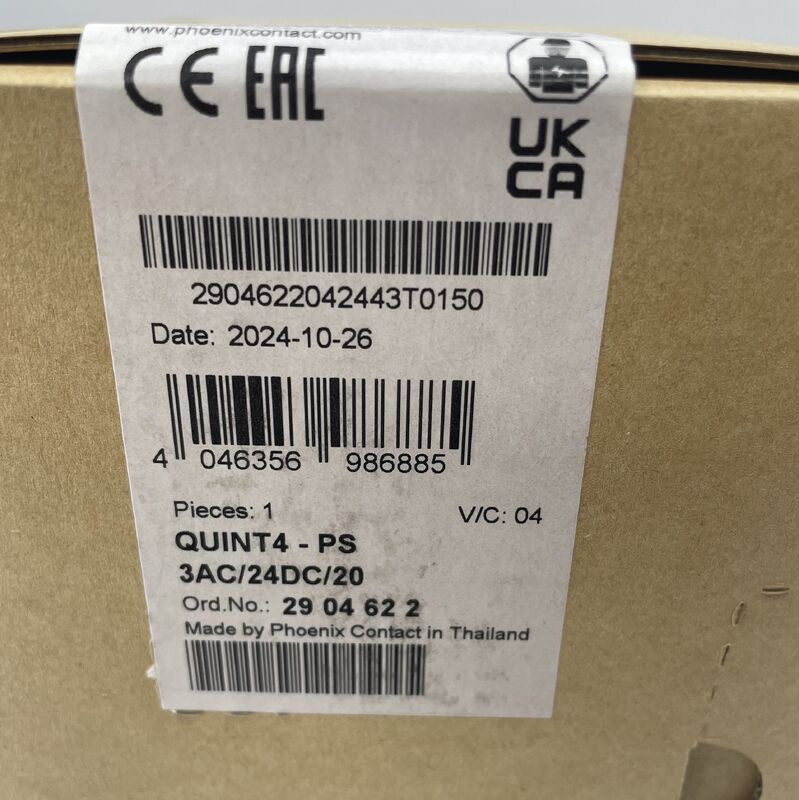

Phoenix Contact QUINT4-PS3AC/24DC/20 2904622 Power Supply
Product Details:
Manufacturer : Phoenix Contact
Product No. : 2904622
https://www.achievers-automation.com More Products
Reliable Industrial Component Sourcing for Enterprises
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.
The Phoenix Contact QUINT4-PS3AC/24DC/20 2904622 is a high-efficiency, three-phase switched-mode power supply designed for reliable power distribution in industrial automation systems. As a core product in Phoenix Contact’s QUINT4 product family, it delivers stable 24V DC output with a 20A nominal current, integrating advanced SFB (Selective Fuse Breaking) technology and an NFC interface for enhanced functionality. This power supply is specifically engineered for DIN rail mounting, ensuring seamless integration into control cabinets across diverse industrial sectors while maintaining consistent operation in harsh environmental conditions — a key advantage for businesses seeking long-term reliability in critical automation setups.
Detail:
|
Specification Category
|
Details
|
|
Product Type
|
Switched-Mode Power Supply (SMPS)
|
|
Product Family
|
QUINT4
|
|
Manufacturer
|
Phoenix Contact
|
|
Product Model & Part Number
|
QUINT4-PS3AC/24DC/20 2904622
|
|
Mounting Type
|
DIN Rail (NS 35/7.5)
|
|
Input Type
|
Three-Phase AC / DC
|
|
Nominal Output Voltage
|
24V DC (Single Output)
|
|
Nominal Output Current
|
20A
|
|
Operating Temperature Range
|
-40°C to +70°C (derating 2.5%/K above 60°C)
|
|
Degree of Protection
|
IP20
|
|
Flammability Rating (Housing)
|
|
|
Dimensions (W×H×D)
|
70 mm × 130 mm × 125 mm
|
|
Performance Parameter
|
Value
|
|
AC Input Voltage Range
|
3x 400V AC – 500V AC (-20% to +10%); 2x 400V AC – 500V AC (-10% to +10%)
|
|
DC Input Voltage Range
|
±260V DC – 300V DC (-13% to +30%); 520V DC – 600V DC (mid-point earthed)
|
|
AC Frequency Range
|
50 Hz – 60 Hz (-10% to +10%)
|
|
Typical Efficiency
|
93.9% (400V AC); 93.8% (480V AC)
|
|
Output Voltage Adjustment Range
|
24V DC – 29.5V DC (constant power)
|
|
Inrush Current (Typical)
|
2A (at 25°C); Inrush Current Integral (I²t) <0.1 A²s
|
|
Mains Failure Bridging Time
|
Typical 33 ms (3x 400V AC; 3x 480V AC)
|
|
Test Voltage (Input/Output)
|
4 kV AC (50 Hz, 1 min)
|
|
Power Factor (cos φ)
|
0.94
|
|
Start-Up Time
|
<1 s; Typical 300 ms (from sleep mode)
|
|
Leakage Current to PE
|
<3.5 mA; 1.7 mA (550V AC, 60 Hz)
|
|
Nominal Power Consumption
|
541 VA
|
Brand
