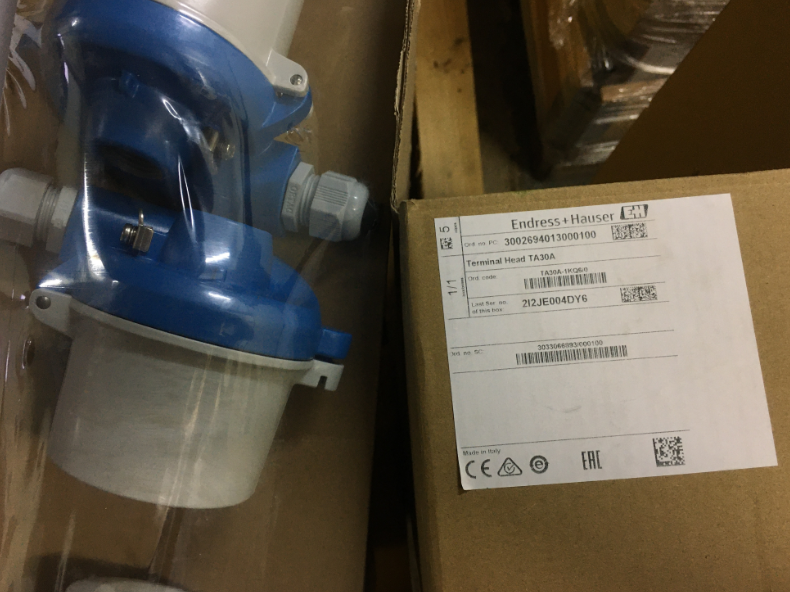

E+H TA30A-1KQ6/0 Aluminum Terminal Head
Product Details:
Manufacturer : Endress+Hauser
Product No. : TA30A-1KQ6/0
https://www.achievers-automation.com More Products
This industrial automation component is supplied for enterprise procurement .Made-to-order and forward delivery are supported, with pricing quoted per inquiry.
To reduce sourcing risk, each order is handled individually with support for model confirmation, condition clarification, and lead time estimation before order placement. Clear quotation terms and consistent communication are provided to help partners manage expectations and complete transactions with confidence. Additional verification or clarification is available when required, supporting professional procurement and long-term cooperation.

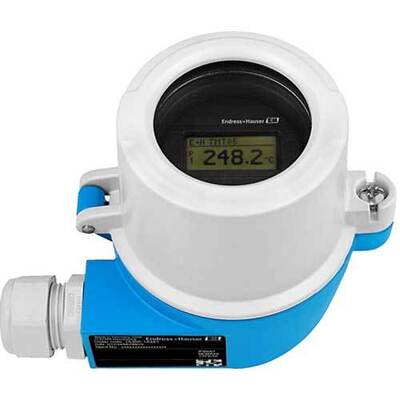

The E+H TA30A-1KQ6/0 is a compact low-profile aluminum terminal head manufactured by Endress+Hauser (E+H), engineered exclusively for housing head-mount temperature transmitters, terminal blocks, and optional local display modules. Built for harsh outdoor and hazardous industrial environments, this model features a hinged low cover with optional sight window, robust polyester powder coating, and universal cable gland threading for global field wiring standards.
Detail:
| Parameter Item |
TA30A-1KQ6/0 Specification |
| Full Model Code |
TA30A-1KQ6/0 (Endress+Hauser / E+H TA30A Series) |
| Product Type |
Single-slot aluminum terminal head for head-mount temperature transmitters |
| Max Internal Transmitter Capacity |
1 x head transmitter / 1 x terminal block |
| Ambient Operating Temperature |
-50 °C ~ +150 °C (-58 °F ~ +302 °F) |
| Ingress Protection Rating |
IP66 / IP68 (NEMA Type 4X); ATEX version IP66/67 |
| Environmental Sealing Material |
Food-grade silicone O-ring gaskets |
| EMC & Grounding |
Internal + external integrated ground terminals |
| Compatible Transmitters |
E+H TMT72, TMT82, TMT12 head-mounted temperature transmitters |
| Compatible Sensors |
PT100 RTD, thermocouple, resistance temperature detectors |
| Diagnostic Compliance |
NAMUR NE107 compatible with integrated transmitter diagnostics |
| Explosion Protection Certifications |
ATEX II 2G Ex db IIC Gb, II 2D Ex tb IIIC Db; IECEx Ex db IIC Gb, Ex tb IIIC Db |
| Optional Upgrade |
Hinged cover with transparent sight window for local display viewing |
| Mechanical Item |
TA30A-1KQ6/0 Configuration |
| Main Housing Material |
Die-cast aluminum alloy |
| Surface Coating |
Polyester powder coating, anti-UV & anti-corrosion |
| Standard Housing Color |
Body: RAL 5012 signal blue; Cover: RAL 7035 light grey |
| Net Weight |
330 g (11.64 oz) |
| Cover Structure |
Low-profile hinged flip cover, tool-free opening |
| Cable Entry Thread Options |
M20×1.5, G1/2", 1/2 NPT |
| Thermowell Connection Thread |
M24×1.5 standard protective fitting port |
| Internal Installation Space |
DIN EN 50446 standard transmitter mounting cavity |
| Overall Form Factor |
Compact oval low-profile industrial field housing |
| Seal Material Durability |
Silicone, resistant to oil, moisture, and chemical vapors |
| Sanitary Compatibility |
Compatible with 3-A certified hygienic temperature sensors |
Brand
E+H is a global leader in providing measurement instruments, services, and solutions for the process and laboratory industries. Since its founding in 1953, the company has been committed to enhancing production efficiency, safety, and sustainability through innovative technologies. E+H’s product portfolio covers a wide range of areas, including flow measurement, level measurement, pressure and temperature measurement, analytical instrumentation, and data management. Its solutions are widely used in industries such as chemicals, food and beverage, oil and gas, power generation, and water and wastewater treatment.
