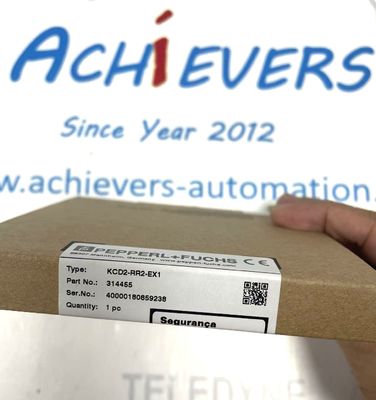

Pepperl Fuchs KCD2-RR2-EX1 Resistance Repeater
Description:
Manufacturer : Pepperl+Fuchs
Product No. : KCD2-RR2-EX1
https://www.achievers-automation.com More Products
The Pepperl+Fuchs KCD2-RR2-EX1 is a high-precision, intrinsically safe 1-channel resistance repeater (isolated barrier) engineered for reliable signal transmission between hazardous and safe areas in industrial automation. As a core component of Pepperl+Fuchs’ trusted KCD2 series, it specializes in processing signals from resistance sensors and RTDs (such as Pt100, Pt500, Pt1000), converting and isolating them to deliver stable outputs for control systems. With SIL 2 (SC 3) certification per IEC/EN 61508 and global hazardous area approvals, this compact module ensures safety and accuracy in explosive environments—from chemical plants to oil & gas facilities. Its slim 12.5 mm housing optimizes panel space, while integrated line fault detection and DIP switch configuration enhance operational efficiency and maintenance simplicity.
Detail:
| Core Type |
Product Series |
KCD2 |
|
Function |
1-Channel Resistance Repeater / Isolated Barrier |
|
Safety Certification |
SIL 2 (SC 3) per IEC/EN 61508 |
| Power Supply |
Rated Voltage |
19–30 V DC |
|
Rated Current |
<28 mA |
|
Power Consumption |
0.35 W (24 V, 1 mA sense current); 0.85 W (30 V, 10 mA sense current) |
| Input (Field Side) |
Compatible Sensors |
Resistance sensors, Pt100, Pt500, Pt1000 |
|
Connection |
Terminals 1, 2, 3, 4 |
|
Transmission Range |
0–10 mA |
|
Available Voltage |
7 V |
|
Lead Resistance Tolerance |
≤10% of resistance value |
|
Line Fault Detection |
Yes (for Pt100), <30 nA |
| Output (Control Side) |
Signal Type |
0–10 mA current |
|
Available Voltage |
0–4.2 V |
|
Connection |
Terminals 5-, 7-, 6+, 8+ |
|
Fault Signal |
Field voltage <150 mV or >4 V (lead disconnection) |
| Performance |
Accuracy |
0.1% (Iₘ ≥1 mA); proportional reduction for Iₘ <1 mA |
|
Temperature Drift |
0.01%/K (-20°C to 70°C for Iₘ ≥1 mA, Rₘ ≥100 Ω) |
|
Settling Time |
≤5 ms |
|
Rise/Fall Time |
≤2 ms (10–90%) |
| Physical & Environmental |
Dimensions (W×H×D) |
12.5 × 119 × 114 mm (0.5 × 4.7 × 4.5 in) |
|
Net Weight |
Approx. 100 g |
|
Protection Rating |
IP20 |
|
Operating Temperature |
-40°C to 70°C (-40°F to 158°F) |
|
Mounting |
35 mm DIN rail (per EN 60715) |
| Hazardous Area Approvals |
Certifications |
ATEX, IECEx, CSA C/US, NEPSI |
|
Marking |
II (1) G (Ex ia Ga) IIC; II (1) D (Ex ia Da) IIIC |
