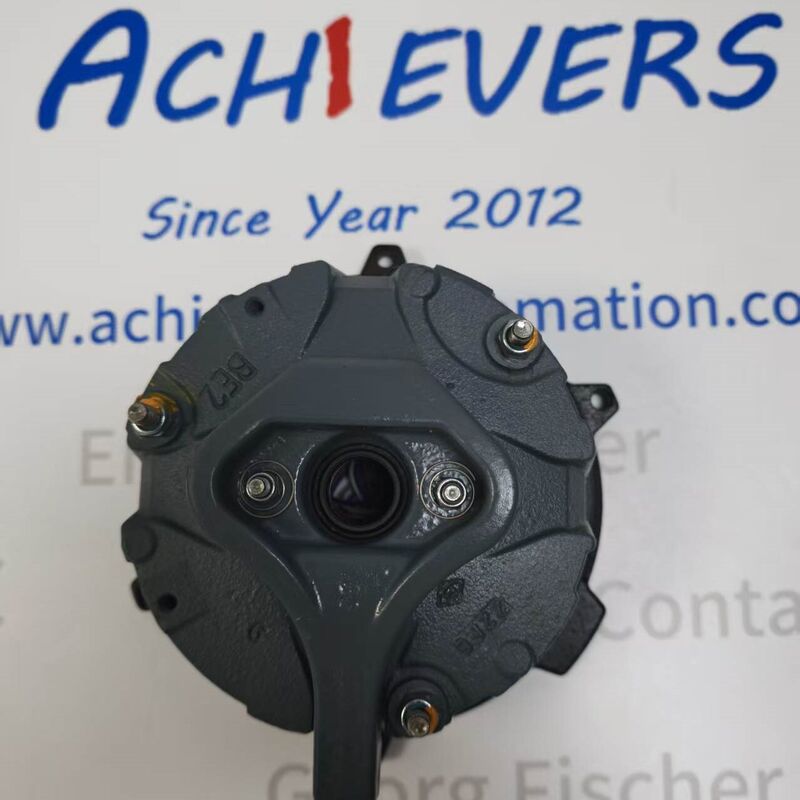

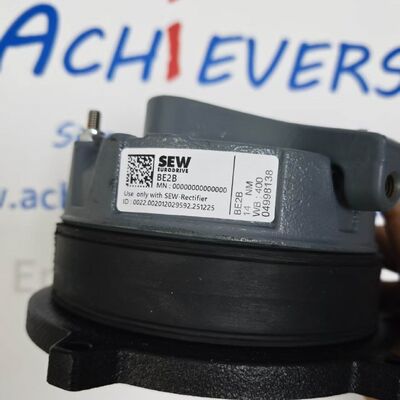

SEW EURODRIVE-BE2B Spring-Applied Electromagnetic Motor Brake
Description:
Description: SEW
Product No. : EURODRIVE-BE2B
https://www.achievers-automation.com More Products
The SEW-EURODRIVE BE2B is a compact single-disc spring-applied electromagnetic brake exclusively matched with SEW DRN80, DRN90 and DRN100 AC gearmotors. It adopts the safety-critical power-off braking principle: internal compression springs clamp the friction disc to lock the motor shaft once coil power cuts off; energized DC magnetic force pulls back the armature plate to release the brake for normal motor rotation.
BE2B supports three configurable static braking torque grades (10 Nm / 14 Nm / 20 Nm) via different spring assemblies. The fully encapsulated epoxy coil delivers stable performance with low continuous holding power. Optional BMFR manual release lever enables maintenance-free manual rotor unlocking without power supply. A matched SEW BS series rectifier converts industrial AC mains to rated DC coil voltage, which is mandatory for normal brake operation.
Detail:
| Parameter Item |
Technical Specification |
| Full Model Code |
BE2B |
| Manufacturer |
SEW-EURODRIVE |
| Compatible Motor Frames |
DRN80, DRN90, DRN100 standard AC motors |
| Brake Working Principle |
Spring-Applied, Power-Off Braking; DC Electromagnetic Release |
| Optional Static Braking Torque |
10 Nm / 14 Nm / 20 Nm |
| Standard Rated Coil DC Voltage |
24 VDC / 60 VDC / 96 VDC / 180 VDC |
| Matching Input AC Rectifier |
BS24, BS60, BS96, BS180 (SEW dedicated rectifier required) |
| Coil Peak Inrush Power |
160–190 W (short 160ms startup pulse) |
| Continuous Holding Power (IH) |
43 W constant low power consumption |
| Inrush / Holding Current Ratio |
8.5:1 |
| Standard Armature Air Gap |
0.2 mm adjustable via set screws |
| Release Response Time (t1) |
≤ 12 ms |
| Braking Engagement Time (t2) |
≤ 18 ms |
| Friction Disc Structure |
Single-piece organic non-asbestos friction pad |
| Optional Accessory |
BMFR automatic reset manual release lever |
| Net Assembly Weight |
3.8–4.0 kg |
| Mounting Interface |
Flange direct bolt-on rear motor shaft end |
| Maximum Allowable Switching Frequency |
120 cycles per minute |
| Specification Item |
Technical Value |
| Standard Ingress Protection |
IP54 (IP55/IP65 optional customized) |
| Standard Operating Ambient Temp |
-20 °C ~ +40 °C |
| Extended Low-Temp Operation |
Down to -40 °C with dual-coil heating accessory |
| Max Extended High-Temp Environment |
Up to +100 °C for customized heat-resistant variant |
| Storage Temperature Range |
-30 °C ~ +70 °C |
| Relative Humidity Tolerance |
5%–95% RH, non-condensing |
| Vibration Resistance Standard |
IEC 60068-2-6 industrial machinery grade |
| Corrosion Protection Class |
Standard factory anti-rust cast iron coating |
| Permitted Working Medium |
Clean air environment, no heavy corrosive vapor |
| Safety Standard Compliance |
EN ISO 13849-1, general PL c safety performance |
| Global Certifications |
CE, RoHS compliant |
| Max Permitted Inertia Energy Per Brake Cycle |
0.06 × 10⁶ J |
| Service Wear Life |
≥ 5 million full brake-release cycles under rated torque |
| Installation Orientation |
Unlimited horizontal / vertical mounting |
| Maintenance Interval |
Gap adjustment inspection every 2,000 operating hours |
