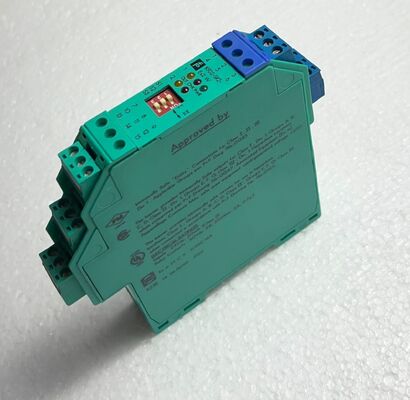

Pepperl+Fuchs KFD2-ST3-EX2 Isolating Switch Amplifier
Description:
Manufacturer : Pepperl+Fuchs
Product No. :KFD2-ST3-EX2
https://www.achievers-automation.com More Product
Detail:
| Brand & Model |
Pepperl+Fuchs KFD2-ST3-EX2 |
| Signal Type |
Digital Input |
| Functional Safety |
SIL 2, SC 3 (compliant with IEC/EN 61508) |
| Supply Voltage |
19 – 30 V DC (power rail or terminals 14+, 15-) |
| Supply Ripple |
≤ 10% |
| Rated Current |
20 – 15 mA + Iout |
| Power Dissipation |
≤ 900 mW (including maximum output power) |
| Input Specifications |
Compliant with EN 60947-5-6 (NAMUR); Open circuit voltage: ~10 V DC; Short-circuit current: ~8 mA |
| Switching Performance |
Switching point: 1.2 – 2.1 mA; Hysteresis: ~0.2 mA; Response time: ≤ 200 µs |
| Line Fault Detection |
Breakage (I ≤ 0.1 mA), Short-circuit (I ≥ 6.5 mA) |
| Output Configuration |
2 transistor outputs (terminal 7+: Output I; terminal 9+: Output II) |
| Output Ratings |
Rated voltage: 30 V DC; Rated current: 100 mA |
| Signal Levels |
1-signal: (Supply voltage) - max. 3 V (100 mA); 0-signal: Blocked output (off-state current ≤ 10 µA) |
| Galvanic Isolation |
Reinforced insulation (IEC/EN 61010-1); Rated insulation voltage: 300 Veff |
| Ambient Temperature |
-20 ... 60 °C (-4 ... 140 °F) |
| Mechanical Dimensions |
20 x 119 x 115 mm (W x H x D); Housing type B2 |
| Mounting |
35 mm DIN rail (compliant with EN 60715:2001) |
| Protection Degree |
IP20 |
| Weight |
Approx. 150 g |
| Certifications |
ATEX (EXA 16 ATEX 0016 X), IECEx (IECEx EXA 16.0009X), UL (E106378) |
