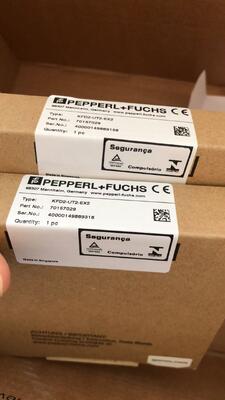

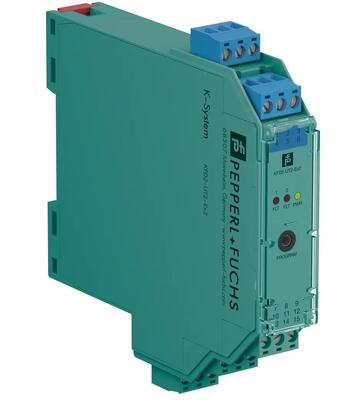

Pepperl+Fuchs KFD2-UT2-EX2 - Dual-Channel Isolated Temperature Safety Barrier (SIL 2)
Description:
Manufacturer : Pepperl+Fuchs
Product No. :KFD2-UT2-EX2
https://www.achievers-automation.com More Product
Detail:
|
Parameter
|
Details
|
|
Product Model
|
Pepperl+Fuchs KFD2-UT2-EX2
|
|
Product Type
|
Dual-channel isolated temperature safety barrier
|
|
Safety Certifications
|
ATEX, IEC 61508/IEC 61511 (SIL 2)
|
|
Hazardous Area Ratings
|
II 1G (Ex ia Ga) IIC; II 1D (Ex ia Da) IIIC
|
|
Power Supply
|
20-30 V DC (rail or terminal connection: 14+, 15-)
|
|
Power Dissipation
|
≤ 1.5 W
|
|
Input Compatibility
|
- RTD: Pt10/Pt50/Pt100/Pt500/Pt1000 (EN 60751), GOST variants, Cu10/Cu50/Cu100, Ni100 (DIN 43760)- Thermocouple: B/E/J/K/N/R/S/T (IEC 584-1), L (DIN 43710), TXK/TXKH/TXA>- Potentiometer: Compatible with 2-wire/3-wire configurations Voltage: -100 to 100 mV
|
|
Input Configuration
|
2-/3-wire (RTD); internal/external cold junction compensation (thermocouple)
|
|
Input Protection
|
Sensor burnout detection, line fault detection (LFD); lead resistance tolerance ≤ 50 Ω per line
|
|
Output Configuration
|
Dual analog current outputs (configurable as 2×input-2×output or 1×input-2×output redundant)
|
|
Output Signal Range
|
0-20 mA or 4-20 mA (programmable per channel)
|
|
Fault Signals
|
Downscale: 0 or 2 mA; Upscale: 21.5 mA (compliant with NAMUR NE43)
|
|
Output Load Capacity
|
0-550 Ω per channel; Open-circuit voltage ≤ 18 V
|
|
Measurement Accuracy
|
- RTD (Pt100, 3-wire): ±(0.06% of measured value + 0.1% of range + 0.1 K)>- Thermocouple: ±(0.05% of measured value + 0.1% of range + 1 K; 1.2 K for R/S types)
|
|
Response Time
|
Max 1.1 s (thermocouple with CJC); 920 ms (3-wire RTD)
|
|
Isolation Rating
|
Safety isolation (input/other circuits): 375 V peak (IEC/EN 60079-11)
|
|
Mechanical Design
|
DIN rail-mount (35 mm, EN 60715); Housing type B2
|
|
Dimensions (W x H x D)
|
20 mm x 119 mm x 115 mm (0.8 x 4.7 x 4.5 inches)
|
|
Operating Temperature Range
|
-20 °C to 60 °C (-4 °F to 140 °F)
|
|
Protection Level
|
IP20 (control cabinet installation)
|
|
Net Weight
|
Approximately 130 g (0.29 lbs)
|
|
Configuration Software
|
PACTware™ (via K-ADP-USB cable and FDT/DTM interface)
|
|
Country of Origin
|
Singapore
|
|
Optional Accessories
|
K-CJC series cold junction compensation terminal blocks for thermocouple applications
|
Brand
Pepperl+Fuchs Automation is our world. Perfect application solutions are our goal.
In 1945, against the backdrop of a war - torn world, Walter Pepperl and Ludwig Fuchs, driven by a strong sense of inventiveness, entrepreneurial foresight, and a deep - seated belief in self - reliance, established a humble radio workshop in Mannheim, Germany.
Their journey was filled with hands - on exploration. As they worked on various radio - related projects, the experiences they amassed became the fertile ground for new and innovative concepts. They took great pleasure in delving into the needs of their customers, constantly striving to develop products that could meet and exceed expectations.
